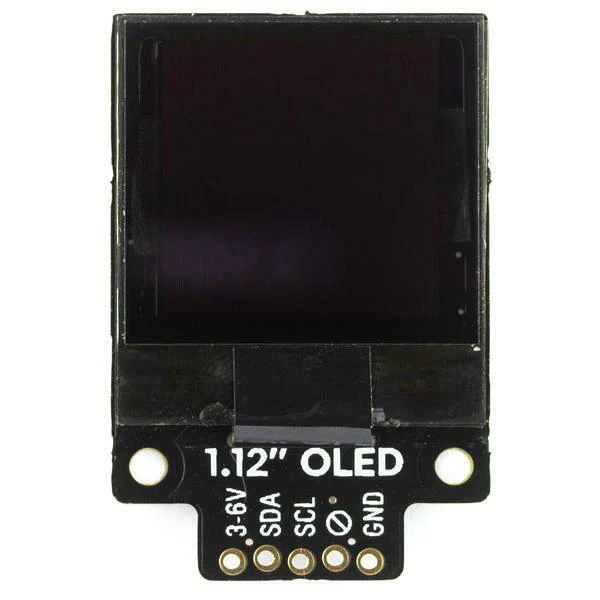

1.12" Mono OLED (128x128, white/black) Breakout

A crisp, bright 1.12" OLED display perfect for adding a compact screen to your Raspberry Pi or Arduino project. The 128×128 pixel monochrome display offers excellent contrast and readability, ideal for graphing, readouts, and displaying icons.

This breakout pops straight onto your Pi's GPIO pins using the included right-angle header. A cuttable trace lets you change the I2C address from 0x3C to 0x3D, allowing you to use two displays simultaneously. It's also compatible with Breakout Garden for tool-free installation.

Key Features

• Bright OLED Display – 1.12" screen with 128×128 pixel resolution and excellent contrast
• Compact Size – 20×20mm active area fits in space-constrained projects
• I2C Interface – Simple two-wire connection (address 0x3C or 0x3D)
• Dual Voltage Support – Works with 3.3V or 5V logic
• Reverse Polarity Protection – Built-in protection against incorrect wiring
• Wide Compatibility – Works with all Raspberry Pi models and Arduino

Ideal For

• Sensor readouts and data logging displays
• System status monitors
• Compact IoT projects
• Wearable electronics

Getting Started

Solder the right-angle female header and connect to GPIO pins 1, 3, 5, 7, 9 on your Raspberry Pi. Install the library and run an example:

• Install: sudo pip install git+git://github.com/rm-hull/luma.oled.git#egg=luma.oled
• Clone examples: git clone https://github.com/rm-hull/luma.examples
• Run: python maze.py --width 128 --height 128 --display sh1106

Package Contents

• 1× 1.12" OLED display breakout
• 1× 5-pin male header
• 1× 5-pin female right-angle header

Specifications

• Display Size: 1.12" diagonal
• Resolution: 128×128 pixels
• Colour: Monochrome white on black
• Active Area: 20×20mm
• Board Dimensions: 28×42.1mm
• Interface: I2C (address 0x3C/0x3D)
• Voltage: 3.3V or 5V

Resources

• Luma OLED Python Library
• Luma Documentation
