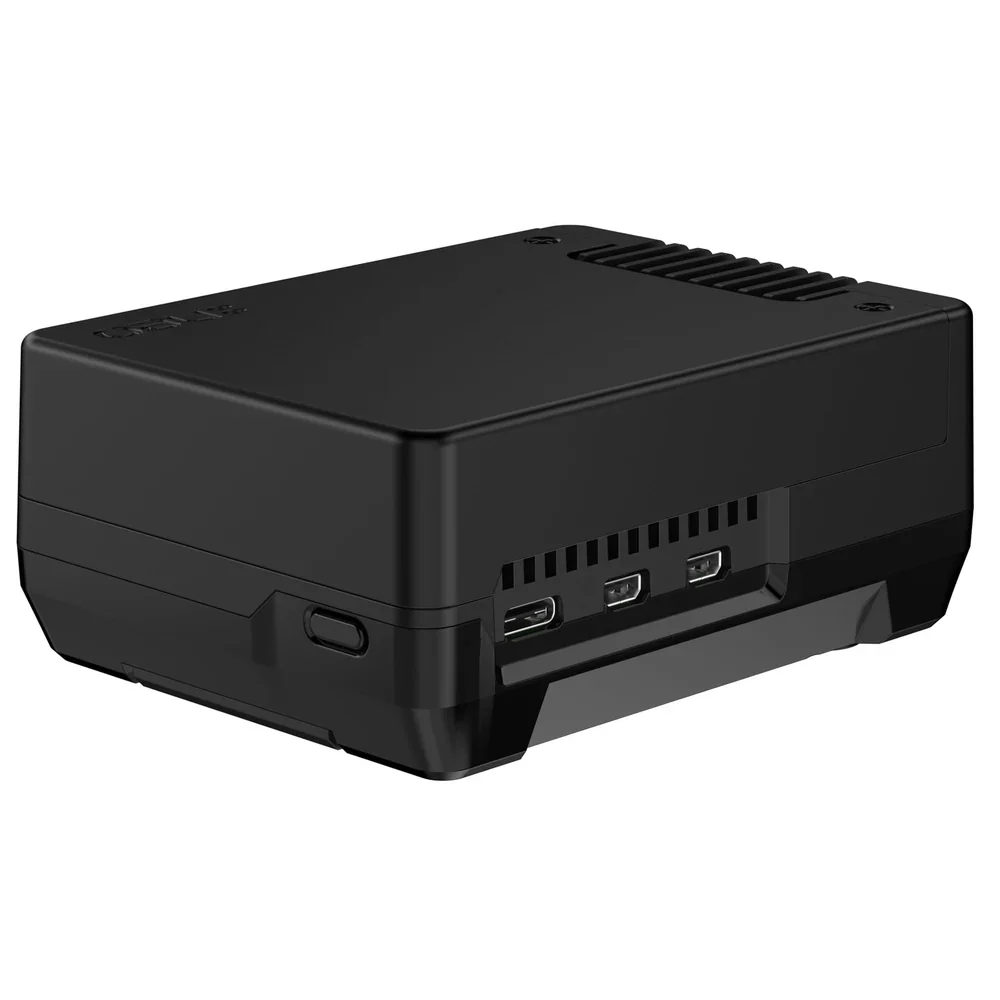

Argon NEO 5 M.2 NVME Case for Raspberry Pi 5

The Argon NEO 5 M.2 NVMe case combines the premium cooling of the standard NEO 5 with M.2 NVMe SSD support via the Raspberry Pi 5's PCIe header. Add fast storage up to 2280 size and boot directly from NVMe for dramatically improved performance.

Features the same aluminium alloy construction with active and passive cooling. The PWM blower fan activates only when needed, transitioning to silent passive cooling during normal operation.

Key Features

• M.2 NVMe Support – Accepts M-Key drives up to 2280 size
• PCIe Connection – Fast storage via Pi 5's PCIe header
• NVMe Heatsink – Aluminium heatsink included for drive cooling
• Aluminium Alloy Case – Premium build with passive heatsink
• 30mm PWM Blower Fan – Active cooling when needed
• Full Port Access – All connectors accessible
• FPC Cable – Impedance-controlled for reliable data transfer

NVMe Compatibility

• M.2 NVMe with M-Key, up to 2280 size
• Single-sided drives only (double-sided will not fit)
• Check Pimoroni NVMe Base compatibility list for guidance

Package Contents

• 1× Argon NEO 5 case
• 1× M.2 NVMe PCIe board
• 1× Screw pack
• 1× Thermal compound
• 1× Instruction manual

Resources

• Instruction Manual (PDF)
• Troubleshooting Guide
• Argon40 Forum
