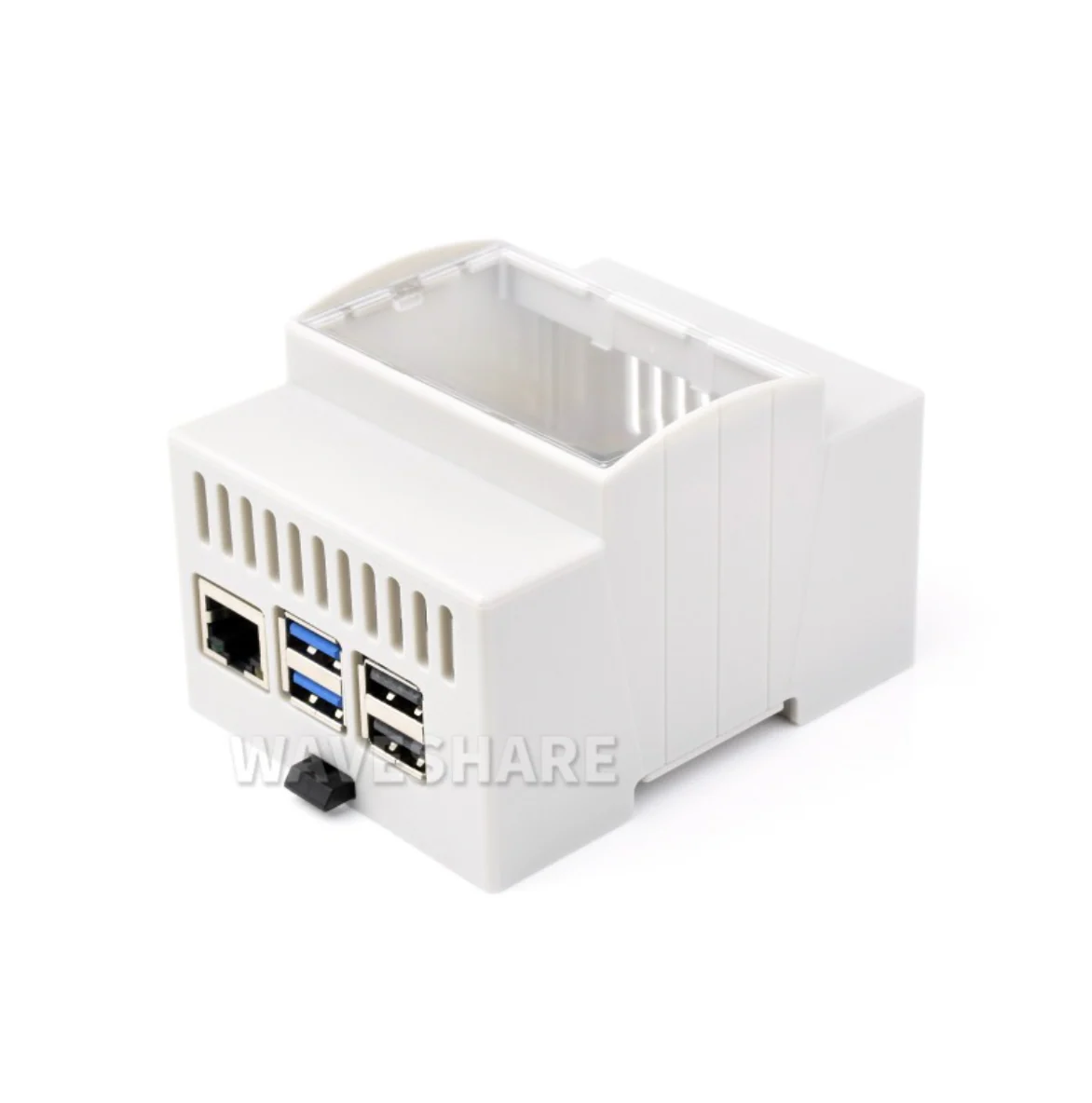

DIN rail ABS Case for Raspberry Pi 5

Mount your Raspberry Pi 5 in industrial control cabinets and electrical panels with this DIN rail compatible ABS case. The injection-moulded enclosure features a clear top window for status LED visibility and enough internal space to accommodate HAT add-on boards.

The snap-fit design with removable bottom panel makes installation straightforward—secure your Pi with the included screws, snap the case together, and clip it onto any standard 35mm DIN rail.

Key Features

• DIN Rail Mount – Standard 35mm rail compatibility for panel installations
• Clear Top Window – View status LEDs without opening the case
• HAT Compatible – Internal space for add-on boards like PoE HAT, RS485 CAN HAT
• Tool-Free Assembly – Snap-fit design with quick-release rail lock
• ABS Construction – Durable injection-moulded plastic
• Full Port Access – All Raspberry Pi 5 ports remain accessible

Specifications

• Compatibility: Raspberry Pi 5
• Material: ABS plastic
• Rail Type: 35mm DIN rail
• Weight: 108g

Ideal For

• Industrial automation and control systems
• Electrical panel installations
• Home automation hubs
• Server rack and cabinet deployments
• PLC and SCADA applications

Package Contents

• 1× DIN Rail ABS Case
• 2× Mounting Screws

Installation

1. Press the rail lock and push it out to release
2. Remove the bottom panel from the main enclosure
3. Secure the Raspberry Pi 5 to the bottom panel with screws
4. Align the bottom panel with the buckles and USB connectors, then snap together
5. Insert the rail lock (note correct orientation)
6. Clip onto DIN rail
