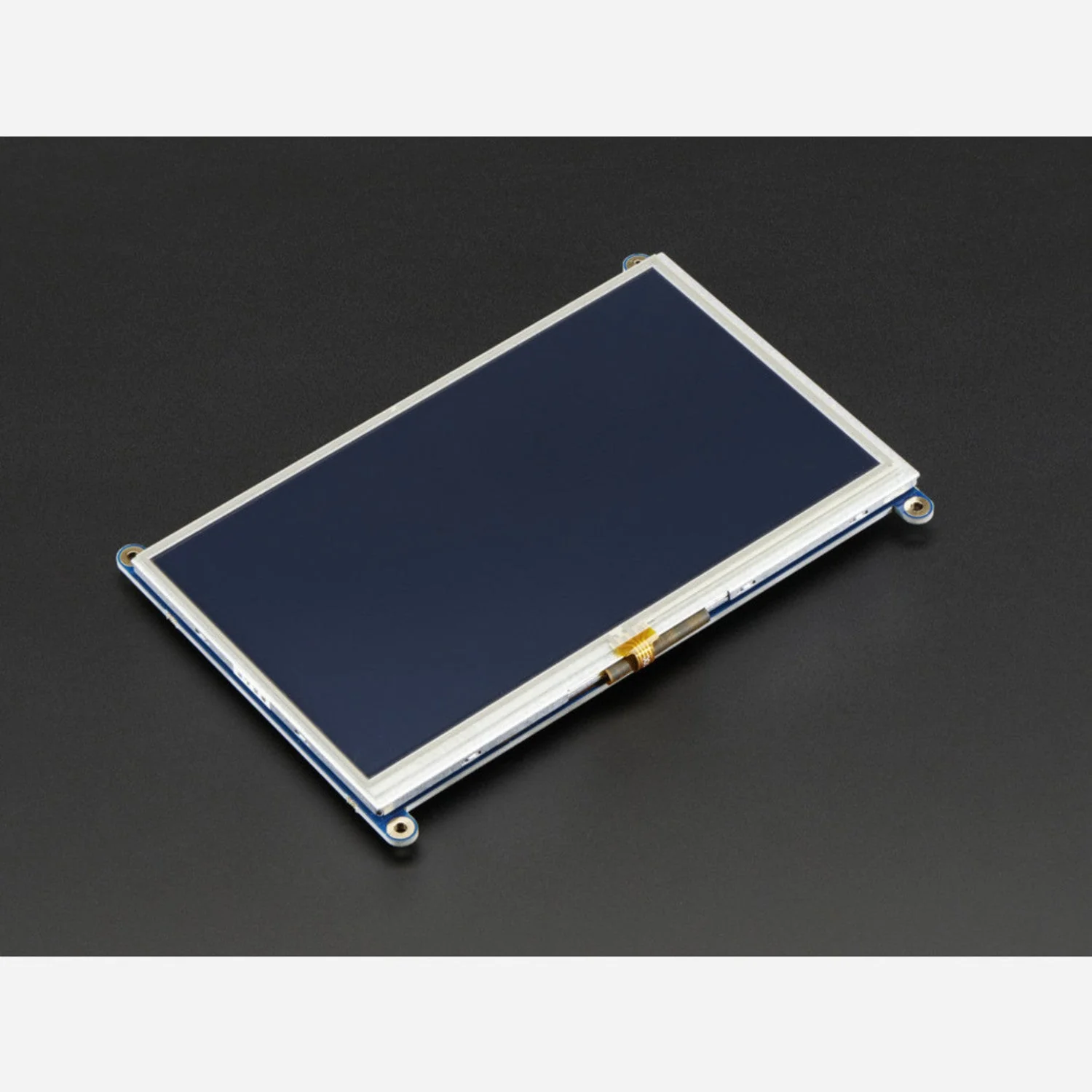

HDMI 7 800x480 Display Backpack - With Touchscreen

This 7-inch HDMI display with integrated resistive touchscreen provides plug-and-play operation for Raspberry Pi and other HDMI-equipped devices. The touchscreen functions as a USB mouse – no drivers required – making it perfect for portable projects and embedded systems.

The compact backpack design is ready for panel mounting in enclosures. USB-powered with adjustable backlight brightness via PWM control.

Key Features

• 7" Touchscreen Display – 800×480 resolution
• USB HID Touch – Works as a mouse, no drivers needed
• HDMI Input – Standard connection
• USB Powered – Variable consumption with backlight control
• Panel Mountable – Designed for enclosure integration
• PWM Backlight – Adjustable brightness
• 24-bit Colour – TFP401 decoder chip

Specifications

• Screen Size – 7 inches diagonal
• Resolution – 800 × 480 pixels
• Touch Type – Resistive
• Power – 600mA max, 400mA at 50% brightness
• Decoder – TFP401 (no HDCP support)

Compatibility

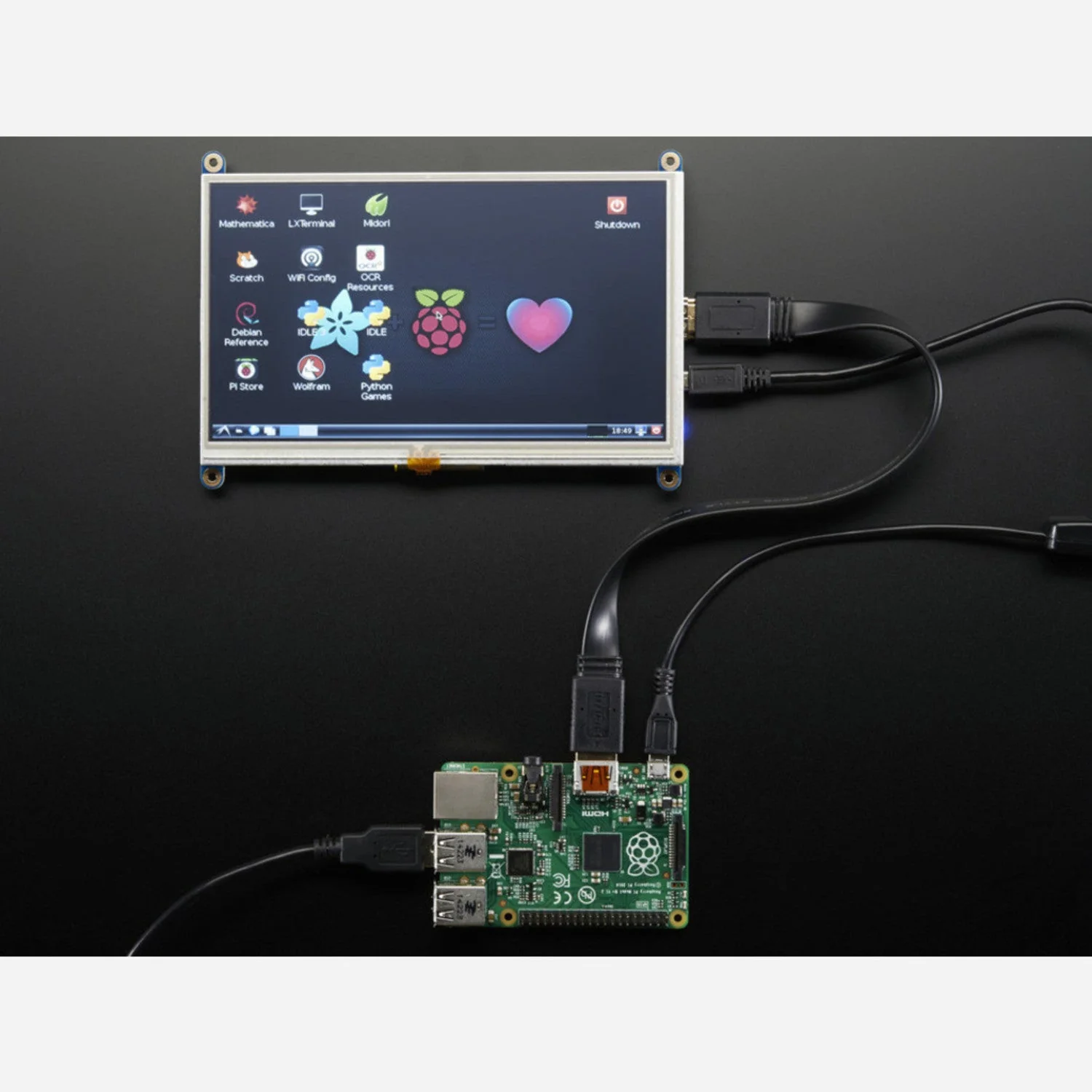

• Raspberry Pi (all models)
• BeagleBone Black
• Mac, Windows, Linux
• Any HDMI source at native resolution

Ideal For

• Embedded touch interfaces
• Portable Pi projects
• Custom kiosks
• Panel-mount applications

Package Contents

• 1× 7" Display with touchscreen
• 1× HDMI backpack driver
