Mini Black HAT Hack3r - Solder Yourself Kit

The Mini Black HAT Hack3r is a debugging and prototyping tool that gives you full access to all GPIO pins while running a HAT or pHAT. This solder-yourself kit includes all components and is perfect for those who enjoy assembling their own gear.

Every GPIO pin is clearly labelled with its function, BCM number, and physical pin number, making it easy to probe signals or add connections without consulting pinout diagrams.

Key Features

• Solder-Yourself Kit – Great soldering practice with all parts included
• Full GPIO Access – All 40 pins broken out while HAT is mounted
• HAT/pHAT Landing Area – Secure mounting with standoffs included
• Clear Pin Labels – Function, BCM, and physical pin numbers
• GPIO Ribbon Cable – 40-way cable included for Pi connection
• Non-Slip Feet – Rubber feet for stable bench use

Ideal For

• Debugging HAT and pHAT projects
• Prototyping with HATs and breadboards
• Testing GPIO signals with oscilloscopes or logic analysers
• Learning Raspberry Pi GPIO pinouts
• Soldering practice

Package Contents

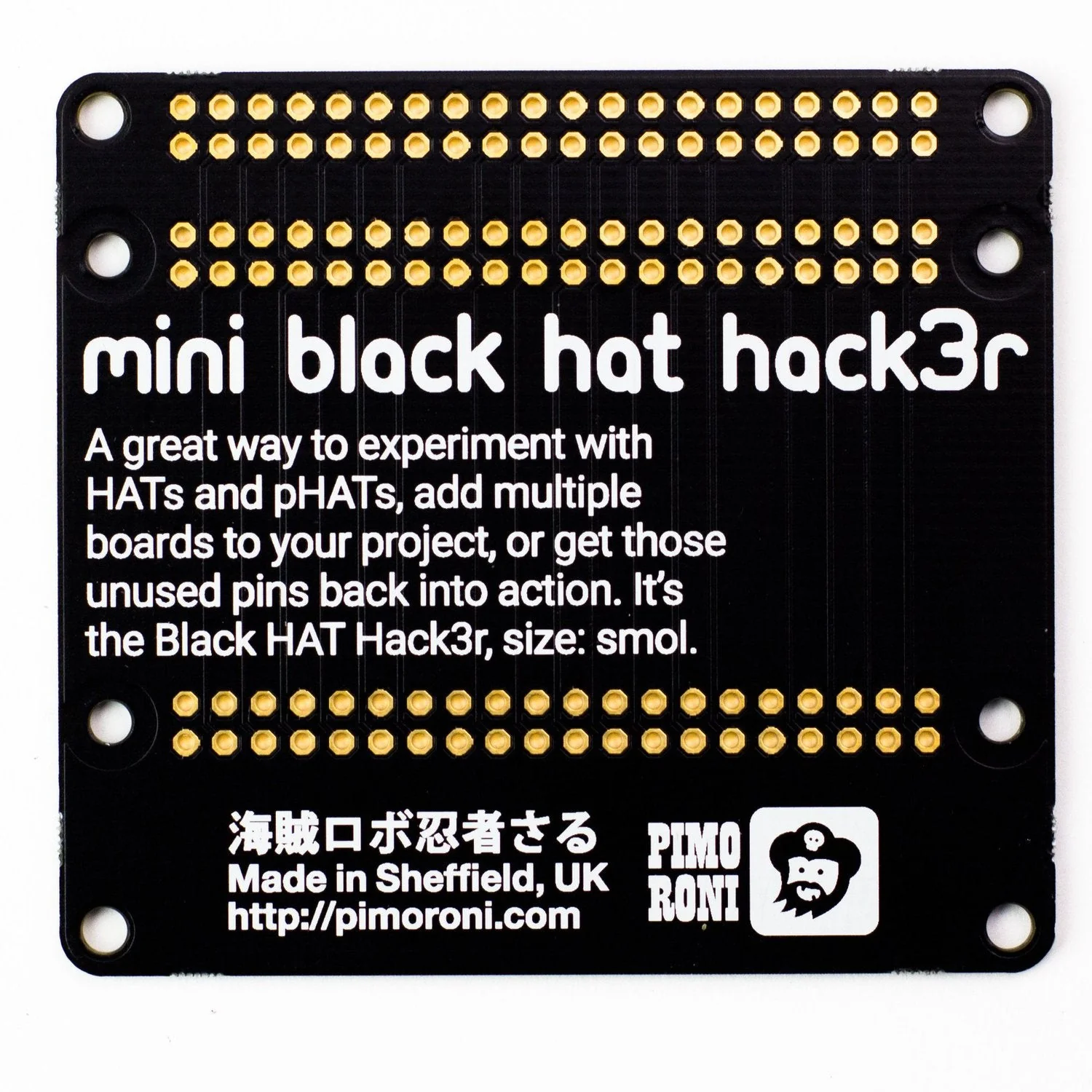

• 1× Mini Black HAT Hack3r PCB
• 3× 40-way pin headers (require soldering)
• 1× 40-way GPIO ribbon cable
• 4× PCB standoffs
• 4× Rubber non-slip feet

Resources

• Pimoroni Product Page
