Raspberry Pi Zero - Version 1.3

The Raspberry Pi Zero v1.3 is the ultra-compact single-board computer, now with a camera connector. At just 65mm × 30mm, it packs a 1GHz single-core processor and 512MB RAM into the smallest Raspberry Pi form factor.

This is the original non-wireless Pi Zero, ideal for embedded projects, wearables, and battery-powered applications where Wi-Fi isn't needed. Version 1.3 added a CSI camera port for connecting Raspberry Pi cameras.

Key Features

• 1GHz Single-Core CPU – BCM2835 ARM11 processor
• 512MB RAM – LPDDR2 memory

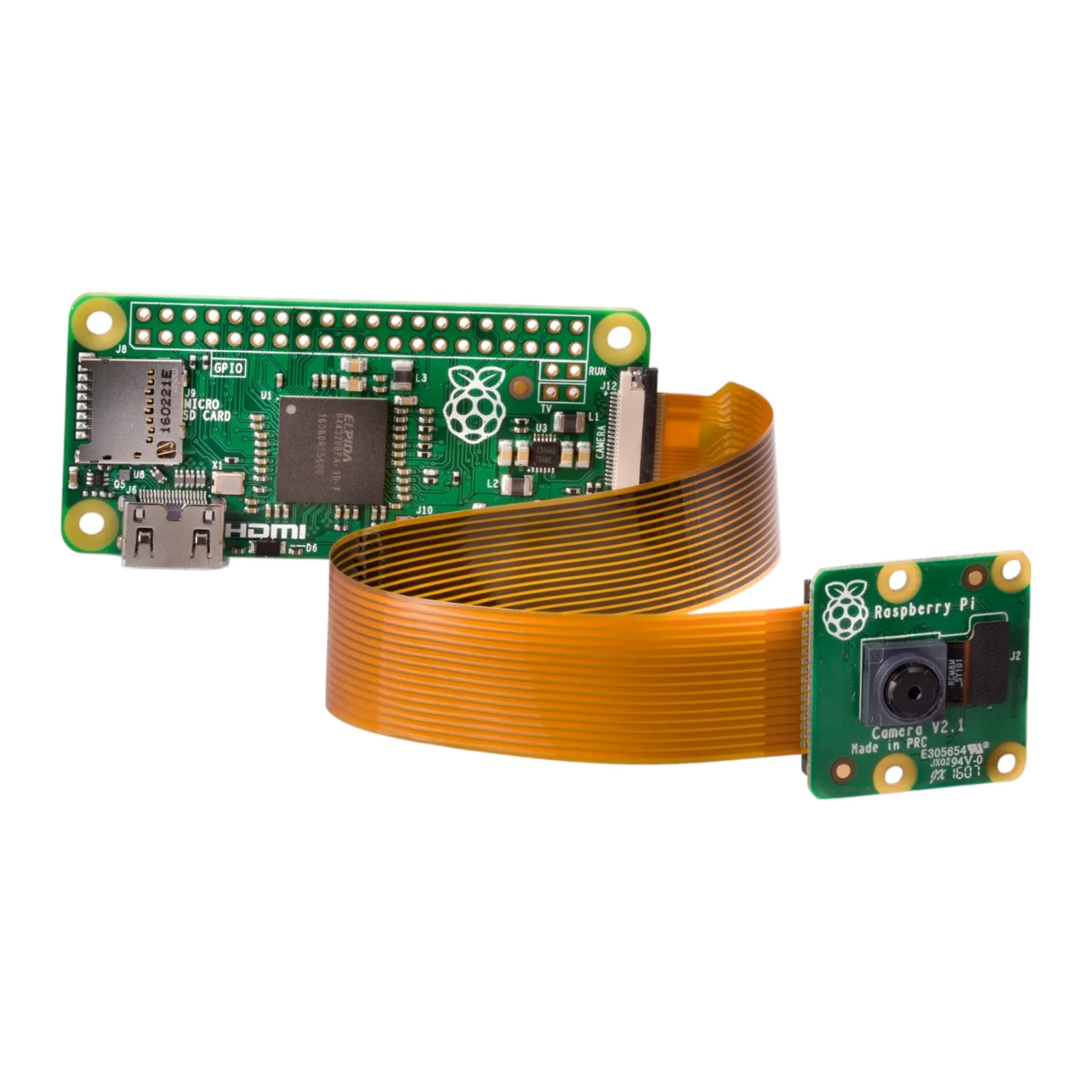

• CSI Camera Port – Added in version 1.3 (requires Zero camera cable)
• Mini-HDMI Output – 1080p video and audio
• Micro-USB OTG Port – For USB peripherals
• 40-Pin GPIO – HAT-compatible (unpopulated)
• Ultra-Compact – 65mm × 30mm footprint

Specifications

• Processor: BCM2835, 1GHz ARM11
• Memory: 512MB LPDDR2 SDRAM
• Video: Mini-HDMI (1080p)
• USB: Micro-USB OTG + Micro-USB power
• GPIO: 40-pin (unpopulated)
• Camera: CSI connector (Zero cable required)
• Storage: microSD card slot

You'll Also Need

• 5V power supply with Micro-USB
• microSD card with Raspberry Pi OS
• Mini-HDMI to HDMI adapter (for display)
• Micro-USB OTG adapter (for USB devices)
