RP2040 Microcontroller

The RP2040 is the microcontroller chip at the heart of the Raspberry Pi Pico. Designed by Raspberry Pi, this high-performance, low-cost chip brings powerful computing to embedded applications in a compact 7mm × 7mm package built on 40nm silicon.

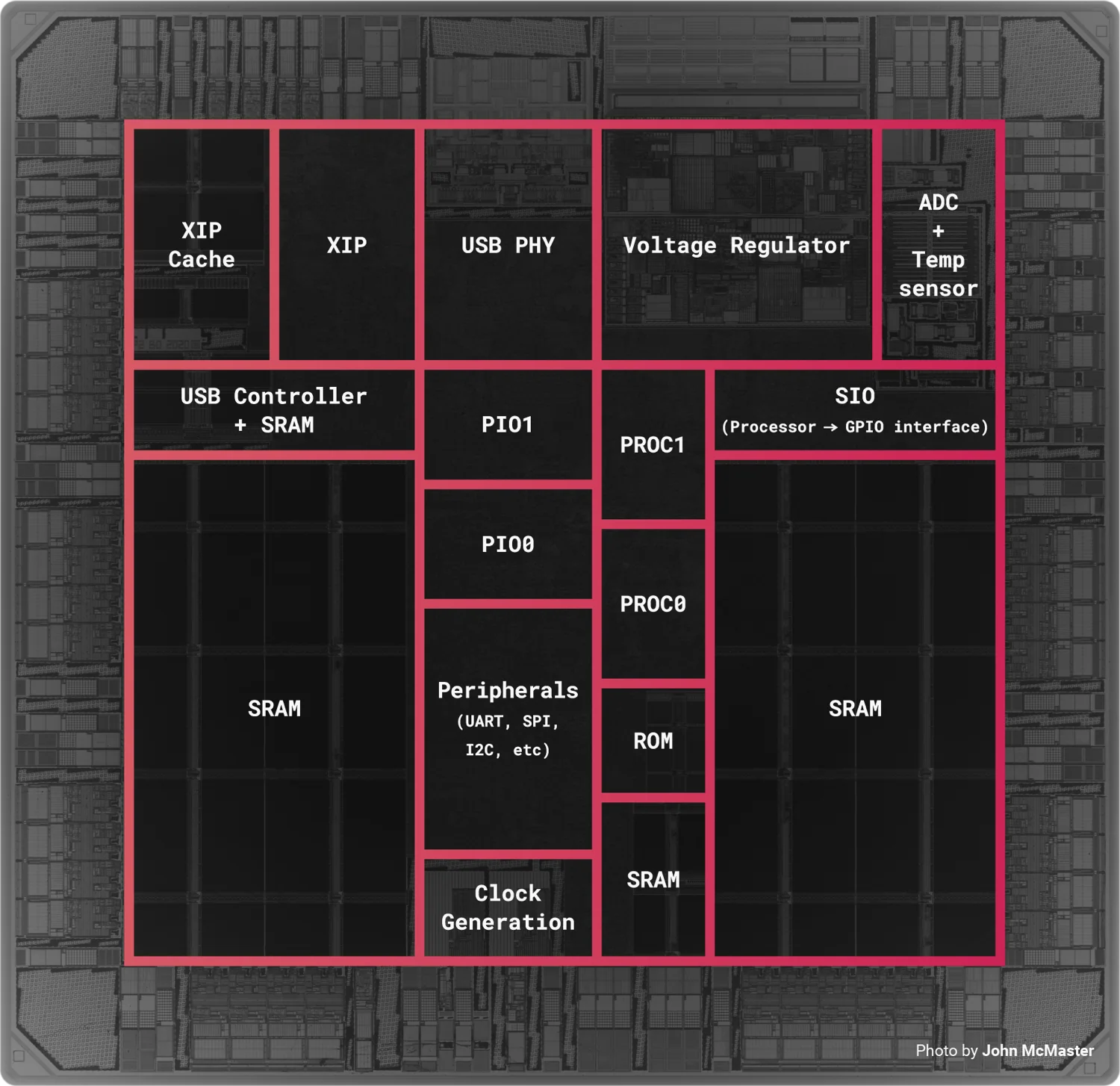

With dual ARM Cortex-M0+ cores, flexible programmable I/O, and six independent RAM banks connected by a fully connected bus fabric, RP2040 enables cores and DMA engines to operate in parallel without contention.

Key Features

• Dual-Core ARM Cortex-M0+ – Two cores running at up to 133MHz
• 264KB SRAM – Six independent banks for parallel access
• Programmable I/O (PIO) – Flexible state machines for custom interfaces
• DMA Controller – Efficient data transfer without CPU overhead
• Low Power – Efficient 40nm process technology
• Compact Package – 7 × 7mm QFN-56

Specifications

• Processor: Dual ARM Cortex-M0+ @ 133MHz
• SRAM: 264KB
• Flash: External QSPI (up to 16MB supported)
• GPIO: 30 multifunction pins
• ADC: 4-channel 12-bit
• Interfaces: 2× UART, 2× SPI, 2× I2C, 16× PWM
• PIO: 2× programmable I/O blocks with 4 state machines each
• Package: QFN-56 (7 × 7mm)

Ideal For

• Custom microcontroller board designs
• Embedded systems development
• IoT device manufacturing
• Education and learning chip-level design
