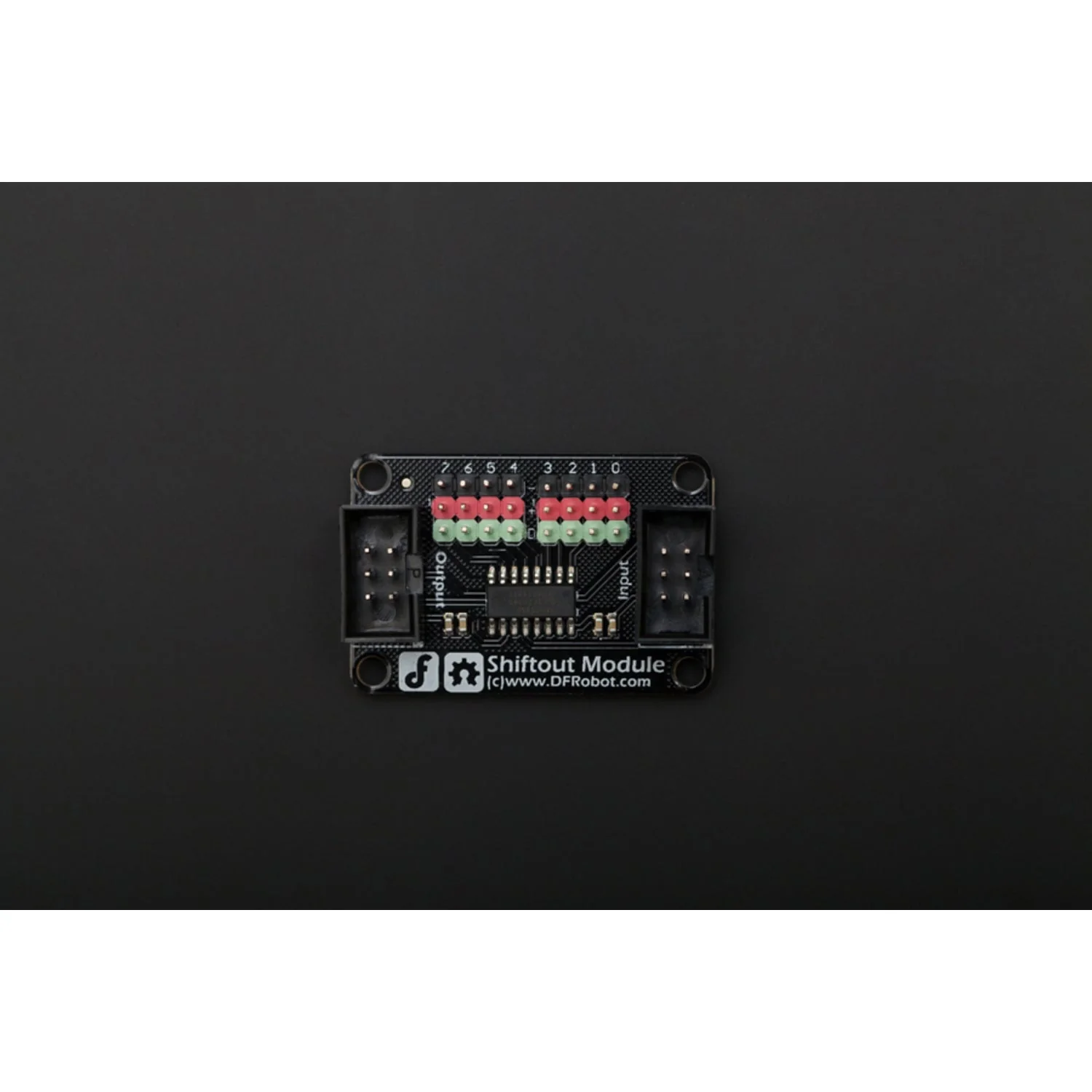

Shiftout Module For Arduino Raspberry Pi- DFRobt

This ShiftOut Module uses a 74HC595 shift register to expand your microcontroller's output capability. Control 8 digital outputs while using only a few GPIO pins—and chain multiple modules together for even more outputs.

A practical solution when your Arduino or Raspberry Pi project needs more digital outputs than available pins, without the complexity of I2C or SPI expanders.

Key Features

• 8 Extra Outputs – Control 8 digital outputs per module
• Daisy-Chainable – Link multiple modules for expanded output capacity
• Minimal Pin Usage – Uses only a few microcontroller pins
• IDC6 Interface – Easy connection with ribbon cables
• Compact Design – Small footprint for tight spaces

Specifications

• Chip – 74HC595 shift register
• Voltage – 5V
• Input Interface – IDC6
• Output Interface – IDC6
• Dimensions – 41 × 22mm

Compatibility

• Arduino (pairs with Interface Shield)
• Raspberry Pi
• Other 5V microcontrollers

Ideal For

• LED arrays and displays
• Projects requiring many digital outputs
• Relay control systems
• Expanding GPIO on pin-limited boards
