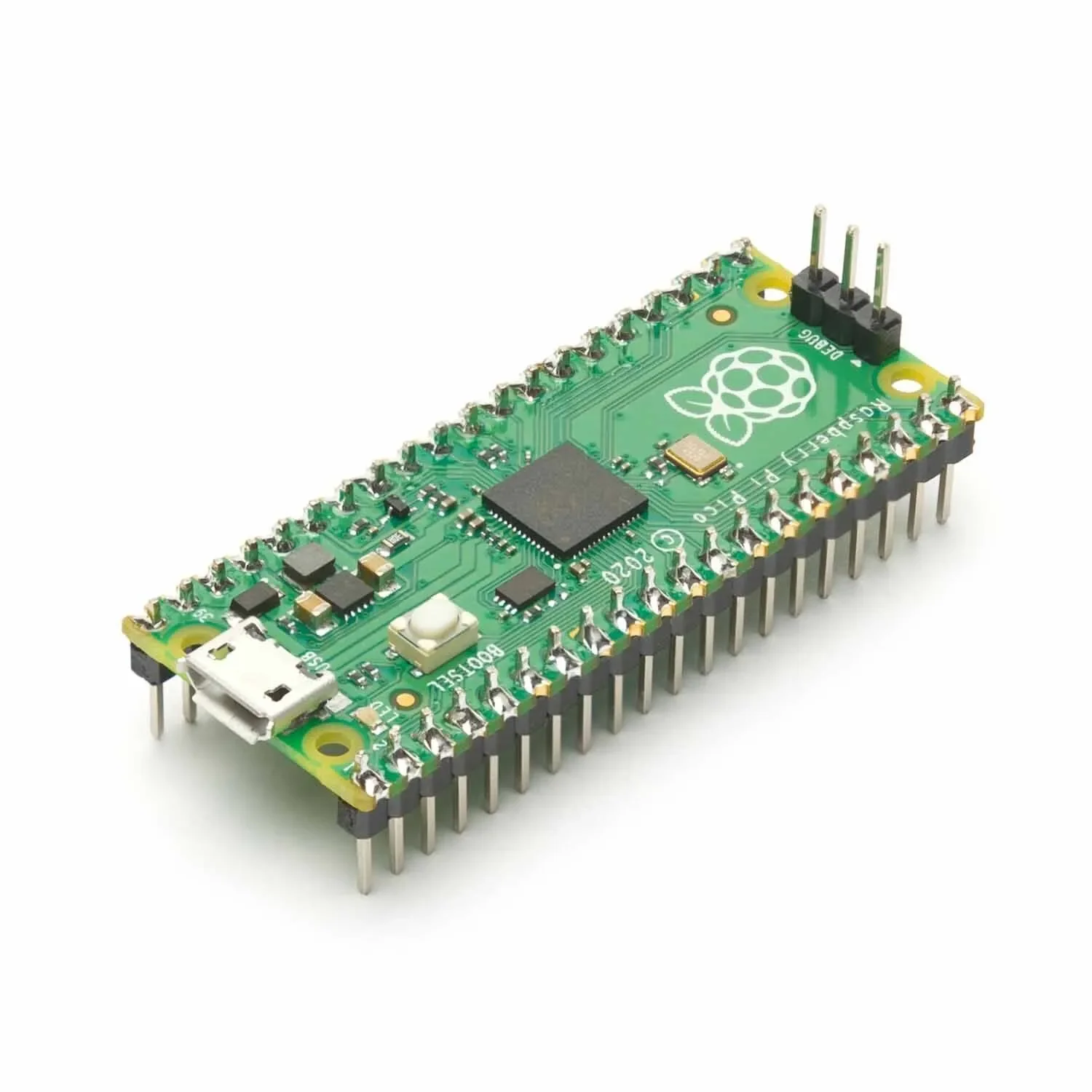

Pico with Headers

A Raspberry Pi Pico with GPIO headers pre-soldered by Pi Australia – ready to plug into breadboards and Pico add-on boards straight out of the box. Perfect if you don't have soldering equipment or just want to get started quickly.

The Raspberry Pi Pico is a low-cost, high-performance microcontroller board built on the RP2040 chip – Raspberry Pi's first custom silicon featuring dual ARM Cortex M0+ cores.

Key Features

• Pre-Soldered Headers – 2× 20-pin headers ready for use
• RP2040 Chip – Dual-core Cortex M0+ at up to 133MHz
• 264KB SRAM – High-performance multi-bank memory
• 2MB Flash – Onboard QSPI flash with XIP
• 26 GPIO Pins – 23 digital + 3 ADC capable
• Flexible Power – USB, external supply, or battery options

Specifications

• Processor: RP2040 dual-core Cortex M0+ @ 133MHz
• Memory: 264KB SRAM, 2MB Flash
• GPIO: 26 multi-function (3.3V)
• ADC: 12-bit, 500ksps, 3 channels
• Interfaces: 2× UART, 2× I2C, 2× SPI, 16× PWM
• USB: USB 1.1 (device or host)
• Programmable IO: 2× PIO blocks
• Debug: 3-pin SWD port

Package Contents

• 1× Raspberry Pi Pico with pre-soldered headers
